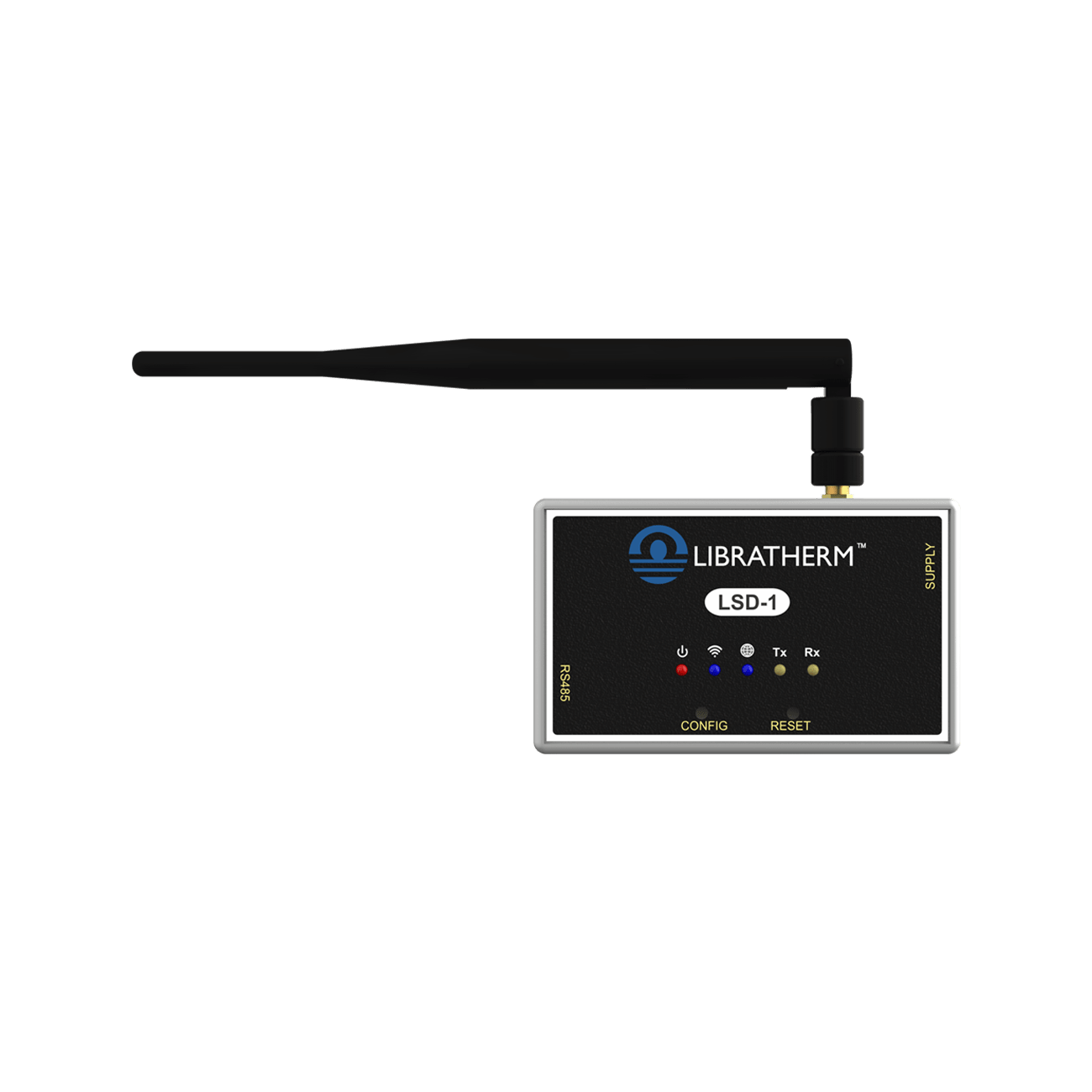

Smart IoT Module with Single Serial Input RS485 – LSD-01
₹6,825
Prices are inclusive of Delivery Charges.
Product Description
LSD-01 – IOT module with 1 x Serial Input RS-485 and operating on 5VDC @2 Amp power supply adapter
Size: 100 x 60 x 25
Technical Specifications
| Parameters | Description |
|---|---|
| Serial Input | MODBUS over Serial RS-485 |
| Supply Connector | Micro USB type AB |
| Power Supply | 5VDC @ 2Amp |
| LED Indication | Red - Power, Blue - WiFi Connectivity and Server Connectivity, Yellow - Tx/Rx |
| Antenna Type | SMA Male - 6 dbi - 2.4GHz. |
| Enclosure Size | 100w x 60h x 25d mm |
| Enclosure | ABS plastic with polycarbonate front graphic. |
Ordering Information
| Model | Part No. |
|---|---|
| LSD-01 | 3521 |
